LRS-350-48 Mean Well Power Supply 48 VDC 7.3A
ر.ع.16.99 Including VAT
Power Supply
48VDC 7.3A
Available on backorder
Description

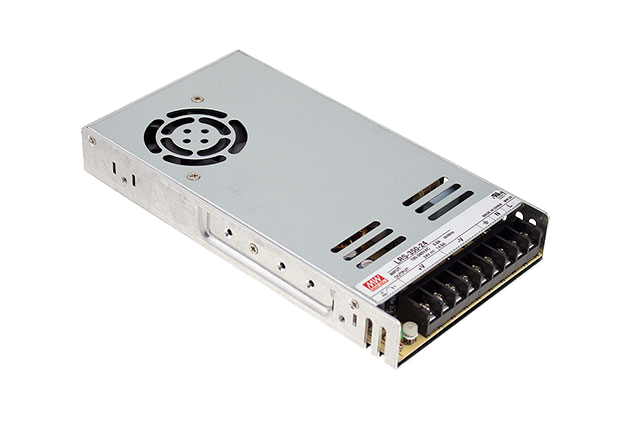

LRS-350-48 Enclosed Power Supply 48VDC 7.3A
Brand: Mean Well
Model: LRS-350-48
output: 48 VDC 7.3A
Non-PFC, most economical models
Ultra compact and 1U low profile
300VAC input surge
No load power consumption: 0.2W~0.75W
5G vibration, 70℃ operation
Operating altitude up to 5000 meters
Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
Datasheet:
Additional information
| Weight | 1 lbs |
|---|---|
| Brand | Mean Well |
| Series | LRS |
| Model | LRS-350-48 |
| TECHNOLOGY | AC/DC |
| INPUT VOLTAGE (VAC) | 85~264 |
| OUTPUT VOLTAGE (VDC) | 48 |
| OUTPUT CURRENT (A) | 7.3A |
| OUTPUT POWER (W) | 350 |
| SHAPE | Enclosed |
| PRODUCT DIMENSION (LXWXH) (MM) | 215x115x30 |
| PRODUCT WEIGHT (KG) | 0.76 |
| IP RATING | not assigned |
| ROHS | ROHS |
| SAFETY | BIS , BSMI , CB , CCC , CE , CUL , EAC , KC , RCM , TUV-62368-1 |
